ZEUS BULK TRANSFER
Zeus is the ultimate bulk transfer pump for agricultural and industrial use. Capable of running long duty cycles and materials compatible with virtually all common chemicals; making Zeus the Professional Grade option.
OPEN FLOW RATE: UP TO 14 GPM
AVAILABLE THROUGH DISTRIBUTION
SUMMER 2024
TECHNICAL INFORMATION
- SELF-PRIMING DIAPHRAGM PUMP WITH BYPASS
- 50 AMP FUSE PROTECTED MOTR FOR HEAT AND SAFETY
- 1+ HOUR DUTY CYCLE DURING TRANSFER
- INTEGRATED ON/OFF SWITCH
- REPLACEMENT PUMP HEADS AVAILABLE
- 2 YEAR LIMITED WARRANTY

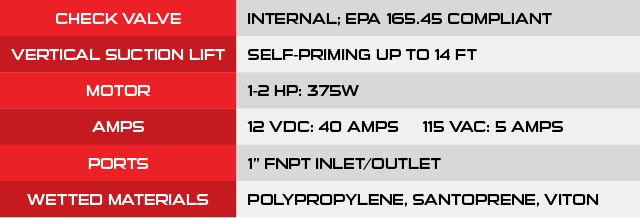

CHECK VALVE
INTERNAL; EPA 165.45 COMPLIANT
VERTICAL SUCTION LIFT
SELF-PRIMING UP TO 14FT
MOTOR
1-2 HP: 375W
AMPS
12 VDC: 40 AMPS 115 VAC: 5 AMPS
PORTS
1" FNPT INLET/OUTLET
WETTED MATERIALS
POLYPROPYLENE, SANTOPRENE, VITON
TRANSFER PUMP KIT CONTENTS
- PUMP MOUNTING BRACKET
- ADAPTER 1" MALE NPT x 1" HOSE BARB
- ELBOW 1" MALE NPT x 1" HOSE BARB
- CAM LOCK (D) 2" FEMALE COUPLE x 2" FEMALE NPT
- BALL VALVE VULL PORT 1" FEMALE NPT
- NIPPLE 1" MALE NPT x 1" MALE NPT
- NOZZLE 45 DEGREE 1" MALE NPT
- 1" HOSE CLAMPS
- SNAP-PINS
- 5' OF 1" SUCTION HOSE
- 12' OF 1" DISCHARGE HOSE
TECHNICAL INFORMATION
- SELF-PRIMING DIAPHRAGM PUMP WITH BYPASS
- 50 AMP FUSE PROTECTED MOTR FOR HEAT AND SAFETY
- 1+ HOUR DUTY CYCLE DURING TRANSFER
- INTEGRATED ON/OFF SWITCH
- REPLACEMENT PUMP HEADS AVAILABLE
- 2 YEAR LIMITED WARRANTY
CHECK VALVE
INTERNAL; EPA 165.45 COMPLIANT
VERTICAL SUCTION LIFT
SELF-PRIMING UP TO 14FT
MOTOR
1-2 HP: 375W
AMPS
12 VDC: 40 AMPS 115 VAC: 5 AMPS
PORTS
1" FNPT INLET/OUTLET
WETTED MATERIALS
POLYPROPYLENE, SANTOPRENE, VITON
TRANSFER PUMP KIT CONTENTS
- PUMP MOUNTING BRACKET
- ADAPTER 1" MALE NPT x 1" HOSE BARB
- ELBOW 1" MALE NPT x 1" HOSE BARB
- CAM LOCK (D) 2" FEMALE COUPLE x 2" FEMALE NPT
- BALL VALVE VULL PORT 1" FEMALE NPT
- NIPPLE 1" MALE NPT x 1" MALE NPT
- NOZZLE 45 DEGREE 1" MALE NPT
- 1" HOSE CLAMPS
- SNAP-PINS
- 5' OF 1" SUCTION HOSE
- 12' OF 1" DISCHARGE HOSE
TECHNICAL INFORMATION
- SELF-PRIMING DIAPHRAGM PUMP WITH BYPASS
- 50 AMP FUSE PROTECTED MOTR FOR HEAT AND SAFETY
- 1+ HOUR DUTY CYCLE DURING TRANSFER
- INTEGRATED ON/OFF SWITCH
- REPLACEMENT PUMP HEADS AVAILABLE
- 2 YEAR LIMITED WARRANTY
CHECK VALVE
INTERNAL; EPA 165.45 COMPLIANT
VERTICAL SUCTION LIFT
SELF-PRIMING UP TO 14FT
MOTOR
1-2 HP: 375W
AMPS
12 VDC: 40 AMPS 115 VAC: 5 AMPS
PORTS
1" FNPT INLET/OUTLET
WETTED MATERIALS
POLYPROPYLENE, SANTOPRENE, VITON
TRANSFER PUMP KIT CONTENTS
- PUMP MOUNTING BRACKET
- ADAPTER 1" MALE NPT x 1" HOSE BARB
- ELBOW 1" MALE NPT x 1" HOSE BARB
- CAM LOCK (D) 2" FEMALE COUPLE x 2" FEMALE NPT
- BALL VALVE VULL PORT 1" FEMALE NPT
- NIPPLE 1" MALE NPT x 1" MALE NPT
- NOZZLE 45 DEGREE 1" MALE NPT
- 1" HOSE CLAMPS
- SNAP-PINS
- 5' OF 1" SUCTION HOSE
- 12' OF 1" DISCHARGE HOSE
INFORMATIONAL VIDEOS
PRODUCT DOCUMENTS
BULK TRANSFER PUMP CONFIGURATIONS
| Item Number | Description | Spec Sheets |
|---|---|---|
|
ZT-9500 |
PUMP ONLY, 12 VDC WITH ON/OFF SWITCH, 18' CABLE WITH BATTERY CLIPS, 50 AMP FUSE |
Coming Soon |
|
ZTK-9500 |
TRANSFER KIT, 12 VDC PUMP, WITH BRACKET, FITTINGS, AND HOSES |
Coming Soon |
|
ZT-9515 |
PUMP ONLY, 115 VAC WITH ON/OFF SWITCH, 6" PLUG AND CORD |
Coming Soon |
|
ZTK-9515 |
TRANSFER KIT, 115 VAC PUMP, WITH BRACKET, FITTINGS, AND HOSES |
Coming Soon |
