PRESSURE SETTING
65 PSI
OPEN FLOW SETTING
5.3 GPM
STANDARD FEATURES
TYPICAL APPLICATIONS
- Variable speed technology
- Virtually silent operation
- 100% factory tested performance
- "Just like home" water supply
- Thermal and low voltage protection
- Fresh water applications only
- Ultimate RV and coach water pump
- Agriculture water pump
- Water transfer pump
- Off-grid fresh water
PACKAGING FEATURES
- Tri-lingual
- Side merchandising
- Easy to understand
- Visually appealing
CERTIFICATIONS
PACKAGING & SHIPPING
INDIVIDUAL PACKAGE
Quantity: 1 pump
Dimensions: 12.3" x 6.0" x 5.3"
Weight: 7.0 lbs / 3.2 kg
MASTER BOX
Quantity: 4 pumps
Dimensions: 12.5" x 12.5" x 12.5"
Weight: 34 lbs / 15.4 kg
STANDARD PALLET
Quantity: 144 units
Dimensions: 48" x 40"
Weight: 1008 lbs / 457.2 kg
PUMP CONFIGURATIONS
Part Number | Description | UPC Number |
|---|---|---|

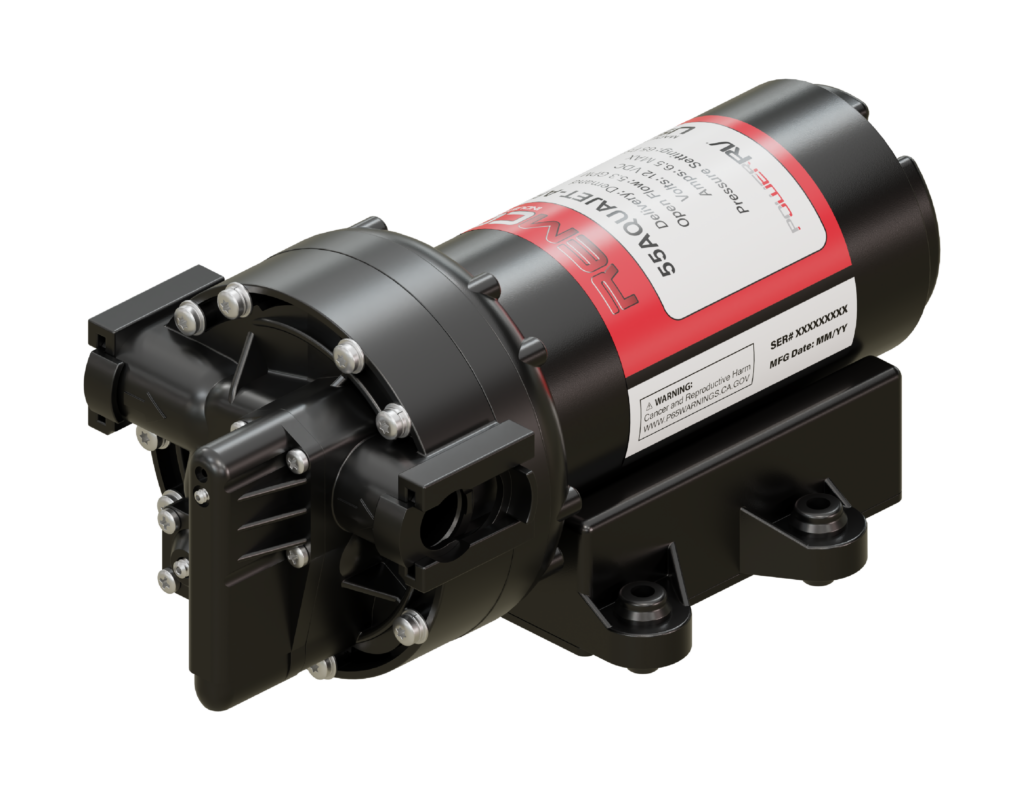

55AQUAJET-ARV | 5.3 GPM, 65 PSI, Variable Speed, 3/4" Quick Attach, Lead Wires | 816624010338 |
RECOMMENDED PARTS
Part Number | Description | UPC Number |
|---|---|---|
QTS-556 | Fitting Kit, 3/4" Quick Attach, 1/2" MNPT, 2-Pack, Straight | 816624012486 |
R-309TB53-R | Pump Filter, 1/2" Hose Barb, 3/4" Quick Attach | 816624015722 |
PRESSURE SETTING
OPEN FLOW SETTING
60 PSI (4.2 BAR)
2.2 GPM (8.3 LPM)
